Application: Suitable for aggressive gaseous and liquid media under extreme conditions.

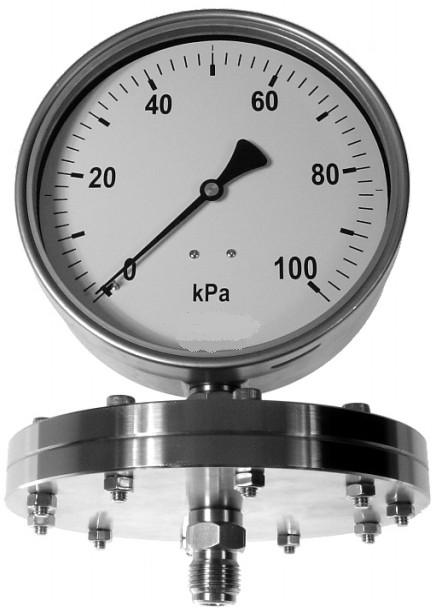

With open connection flange, diaphragm gauges are suitable for viscous, crystallising or polluting media. The design ensures resistance to vibration and protection against over pressures.
Size: 4"(100mm), 6"(150mm)
Case£ºstainless steel 304
Ring: stainless steel 304 bayonet bezel
Window: instrument glass or plexiglass
Measuring System: diaphragm with push rod principle
material: stainless steel 316
Movement: brass or stainless steel
Connection: 1/2" BSP / 1/2"NPT £¨male or female£©
Pointer and dial: aluminum
Rang: vacuum, compound 0 to 2500 kPa |
